Tank Anodes – Zinc

Type	Material	Net weight	Gross weight	L mm	W mm	H mm
50 T	Zinc	4,7	5	400	47	40
50 T Material: Zinc BACNO: 120500 DWG NO: 111-517 Net weight: 4,7 Gross weight: 5 A length: 400 L length: 400 W mm: 47 H mm: 40 Click to see all specifications Request this anode ×
105 T	Zinc	9,4	10	400	70	60
105 T Material: Zinc BACNO: 121050 DWG NO: 111-518 Net weight: 9,4 Gross weight: 10 A length: 400 L length: 400 W mm: 70 H mm: 60 Click to see all specifications Request this anode ×
100 T C3	Zinc	10	11,7	400	70	60
100 T C3 Material: Zinc BACNO: 121003 DWG NO: 111-962 Net weight: 10 Gross weight: 11,7 A length: 400 L length: 400 W mm: 70 H mm: 60 Click to see all specifications Request this anode ×
100 T C4	Zinc	10	11,7	400	70	60
100 T C4 Material: Zinc BACNO: 121004 DWG NO: 111-830 Net weight: 10 Gross weight: 11,7 A length: 400 L length: 400 W mm: 70 H mm: 60 Click to see all specifications Request this anode ×
106 T - Lindø	Zinc	10	10,6	400	70	60
106 T - Lindø Material: Zinc BACNO: 121060 DWG NO: 111-820 Net weight: 10 Gross weight: 10,6 A length: 400 L length: 400 W mm: 70 H mm: 60 Click to see all specifications Request this anode ×

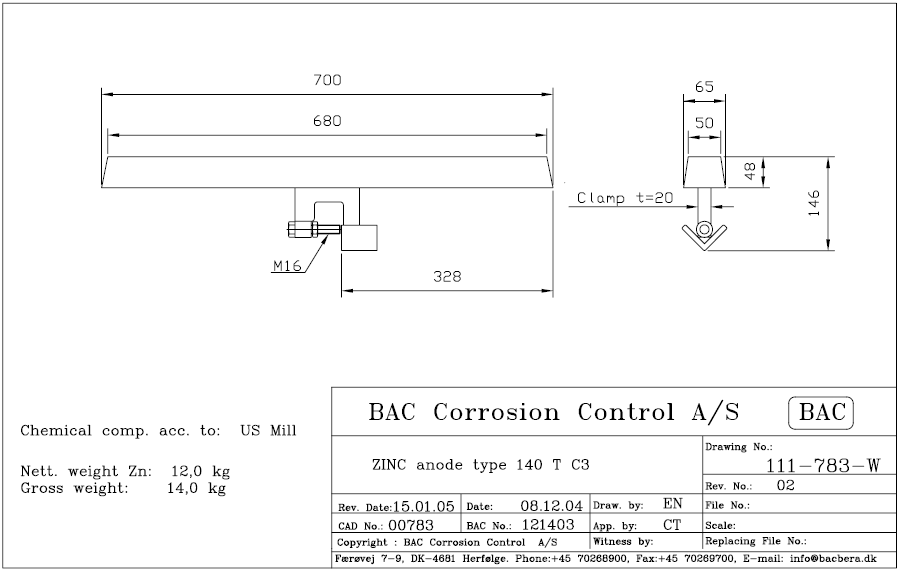

140 T C3	Zinc	12	14	700	65	48
140 T C3 Material: Zinc BACNO: 121403 DWG NO: 111-783 Net weight: 12 Gross weight: 14 A length: 700 L length: 700 W mm: 65 H mm: 48 Click to see all specifications Request this anode ×
140 T C4	Zinc	12	14	700	65	48
140 T C4 Material: Zinc BACNO: 121407 DWG NO: 111-784 Net weight: 12 Gross weight: 14 A length: 700 L length: 700 W mm: 65 H mm: 48 Click to see all specifications Request this anode ×
140 T	Zinc	12,8	14	1360	40	40
140 T Material: Zinc BACNO: 121400 DWG NO: 111-548 Net weight: 12,8 Gross weight: 14 A length: 1230 L length: 1360 W mm: 40 H mm: 40 Click to see all specifications Request this anode ×
220 T	Zinc	20,2	22	1235	64	51
220 T Material: Zinc BACNO: 122200 DWG NO: 111-549 Net weight: 20,2 Gross weight: 22 A length: 1235 L length: 1235 W mm: 64 H mm: 51 Click to see all specifications Request this anode ×
225 T	Zinc	20,3	22,5	1415	50	50
225 T Material: Zinc BACNO: 122250 DWG NO: 111-550 Net weight: 20,3 Gross weight: 22,5 A length: 1235 L length: 1415 W mm: 50 H mm: 50 Click to see all specifications Request this anode ×
300 T	Zinc	28,2	30	1235	68	58
300 T Material: Zinc BACNO: 123000 DWG NO: 111-561 Net weight: 28,2 Gross weight: 30 A length: 1235 L length: 1235 W mm: 68 H mm: 58 Request this anode
305 T	Zinc	28,3	30,5	1415	58	58
305 T Material: Zinc BACNO: 123050 DWG NO: 111-551 Net weight: 28,3 Gross weight: 30,5 A length: 1235 L length: 1415 W mm: 58 H mm: 58 Click to see all specifications Request this anode ×
450 T	Zinc	42,7	45	1600	76	63
450 T Material: Zinc BACNO: 124500 DWG NO: 111-552 Net weight: 42,7 Gross weight: 45 A length: 1600 L length: 1600 W mm: 76 H mm: 63 Click to see all specifications Request this anode ×
500 T	Zinc	48,1	50	1600	78	68
500 T Material: Zinc BACNO: 125000 DWG NO: 111-553 Net weight: 48,1 Gross weight: 50 A length: 1600 L length: 1600 W mm: 78 H mm: 68 Click to see all specifications Request this anode ×
570 T	Zinc	55	57	1600	86	66
570 T Material: Zinc BACNO: 125700 DWG NO: 111-554 Net weight: 55 Gross weight: 57 A length: 1600 L length: 1600 W mm: 86 H mm: 66 Click to see all specifications Request this anode ×

Tank Anodes – Zinc

50 T

105 T

100 T C3

100 T C4

106 T - Lindø

140 T C3

140 T C4

140 T

220 T

225 T

300 T

305 T

450 T

500 T

570 T

Request anode
